3018 CNC GRBL control Diy CNC Router machine 30x18x4.5cm,3 Axis Pcb Pvc Milling machine Wood Router laser engraving

From £269.65
  • Ships From:

  • Color:

Categories:

Buy With Confidence

100% Safe Payment


;

  • Description

    Notice:
    this item will delivery from our “EU/Germany“warehouse,within European Union countries free VAT(import duty)and by UPS/DHL, the package will be not easy broken with delivery.

    The free ship and free VAT Europe countries area:

    Austria, Belgium, Bulgaria, the Czech Republic, Denmark, Estonia,

    Finland, France, Germany, Greece, Hungary, Ireland, Italy,

    Latvia, Lithuania, Luxembourg, Monaco, Netherlands, Norway,

    Poland, Portugal, Romania, Slovakia, Slovenia, Spain,Sweden.

    Package include:

    1) 1set GRBL 3018 CNC Laser machine kit ( without ER11 Collet and laser Head )

    2) 1set GRB L 3018 CNC Laser machine kit (without laser) ER11-A type nut with Collet

    3) 1set GRB L 3018 CNC Laser machine kit (without laser) ER11-A type nut with Collet and MPG controller

    4) 1set GRB L 3018 CNC Laser machine kit ( with 500mw laser head, only lase shipping from China )

    5) 1set GRB L 3018 CNC Laser machine kit ( with 2500mw laser head,only lase shipping from China )

    6) 1set GRB L 3018 CNC Laser machine kit ( with 5500mw laser head,only lase shipping from China )

    10 x 20°0.1mm drill bits
    4 x plates
    1 Set of allen wrench
    1 x power supply

    Notice:  This item from EU warehouse delivery to EU customer, but Becase Laser is dangerous product,without our EU warehouse stock, if you order 3018 CNC machine with any laser head,we can only from China ship to you




    Introduction:

    Body used profiles and plastic, small size, light weight, USB interface, GRBL control system, learning, entry preferred. Can use carving knife, but also can use laser engraving.

    Can be engraved plastic, wood, acrylic, pvc, pcb, wood and the like material.

    Specification:

    1. Working area : 30x18x4.5cm

    2. Frame size : 40x33x24cm

    3. Spindle : 775 spindle motor (12-36V)24V: 10000r/min

    4. Spindle Chuck: normal

    5. Step motor : Fuselage length 34MM,Current 1.33A, 12v.Torque 0.25N/M

    6. Power supply : 24V 5.6A

    7. Software : GRBL controller

    8. Support System: Windows XP / Win 7 / Linux

    9. Drill bits: tip 0.1mm ,20 degree , diameter3.175mm.the package include 10p

    10. Laser: 500mw 405nm,12v / 2500mw 450nm,12v / 5500mw 450nm,12v.

    I. GRBL 0.9J,USB port cnc engraving machine control board, 3 axis control

    Specification:

    Connection: USB (USB-CH340)

    Software: GRBL controller, UniversalGcodeSender

    Input voltage: 12-36V

    Master chip: atmel 328P (arduino nano)

    Stepper motor driver: A4988

    Spindle drive chip: MOSFET (recommendation 12~36V, current : within 10A )

    Spindle PWM speed: Support

    Support stepper motor: 12V, maximum current of 2A or less is recommended within 1.5A and additional heat. (Any stepper motor 42, 57)

    Laser engraving: Support

    Power Interface: 5.5-2.5mm DC interface

    Main application:

    Can be engraved plastic, wood, acrylic, pvc, pcb, wood and the like material.

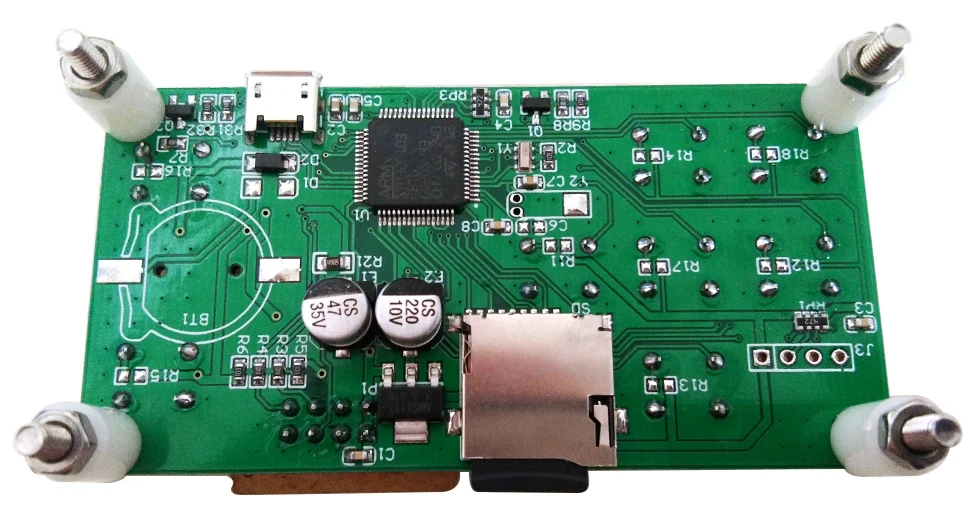

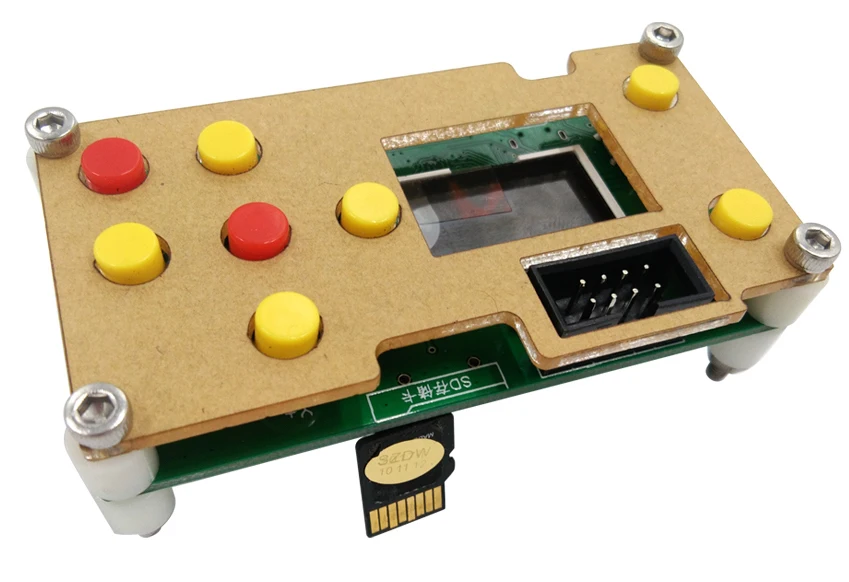

    SD shows it is SD card condition, turn on power supply after insert SD card, otherwise, it won’t work. SD card capacity 4G could be recognized.

    Press X- or X+ button to switch
    Control:Press confirmation button to access manually controlling page
    File:Press confirmation button to access file page
    Set:Press confirmation button to access setting page

    On the off-line controller, buttons control corresponding actions.

    SPN is spindle controlling,should press SPIN.
    Fan is fan controlling, should press SMOD.
    Note: To exit this page, should press back button longly. after exit, save the current location as engraving starting point X0Y0Z0

    Note: system can recognize max 100 available files one time (***.TXT***.txt***. NC***.nc***.CNC

    ***.cnc***.TAP***.tap could be recognized),not support files with long name.
    Press Y+ or Y- to choose files need to be engraved, press confirmation button to access engraving page.

    Press ok to start engraving

    If you want to stop during engraving, press back button longly, then back to the file selection page(machine will not stop at once, as GRBL controller has already saved a part of G code, will stop after carry out completely).

    The left words show the machine moving distances every time you press the button on the condition of manually controlling, press Y+ or Y- to choose, default 1mm each time.
    Press X- or X+ for switchover setting.
    The right words show Communication baud rate setting, default 9600
    After setting, press confirmation button to save, then press back button to exit setting page.
    Note: the setting parameters can not be saved on the condition of electricity outage, it will be default value when turn on next time.
