1) H.265AI/H.265X(compatible H.265/H.264)
2) CMOS sensor, day,IR cut filter off,color;night,IR cut filter on,black/white
3) With IR-CUT, support day/night switch
4) 5MP (2592×1944) 20fps
5) Support ONVLF;Support Third-party NVR
6) 48pcs IR Leds,25m ir distance for night vision
7) Multi-screen software and CMS
8) Image processing: auto exposure(AE), auto white balance(AWB), auto gain control(AGC)
9) Support motion detection
10) Support visit by smart phone,app XMeye
Resolution:5MP (2592×1944) 20fps
Image sensor:Hi3516EV300+1/2.7″SONY IMX335 CMOS
Lens:M12 3.6mm 6mm 8mm Optional
Communication Interface:1 RJ45 10M / 100M ethernet port
Video Image Compression:H.265AI
IR LED:48pcs IR LED with 25M IR Distance
Material:metal outdoor indoor use
Power:DC 12V For DC 12V Version / 48V PoE Switch or Injector For 48V PoE Version (NOT INCLUDED )
Audio:Build In Microphone. Support Audio Recording (Don’t support Two way audio)
1 x IP Camera
1 x Use Manual
1 x Waterproof cap of cable
3 x Wall plug and screws
Q & A
1, IP camera default IP address:192.168.1.10
If there is a problem with “Can not find the Device”, it is the default ip address is not in the same network segment as your router.
Please click “Edit Device” to change the camera’s ip address,
For example, if your router’s ip address is 192.168.0.1, then you need to change the camera’s ip address to 192.168.0.XX.
“DeviceManage” It can find and change the IP address, upgrade the firmware.
2, P2P website:“www.xmeye.net” ,please use IE and install ActiveX,only IE supports Multi Language.Chrome,Safari just support Chinese .
then please input your P2P ID,user name and password to login and preview.
Access to the IPC through the web, only one screen can be displayed.
There are multiple IPC, please use client software to manage(such as: CMS VMS SNVR)
3,The camera’s port information.
ONVLF 2.0 Port 8899 ;RTSP Port 554 ;HTTP Port 80;Media Port 34567;E-mail default port 25; SLL protocol Port 465.
4,Does the cameras can be compatible with other manufacturers NVR?
Please confirm whether other manufacturers NVR support onvf protocol.
Our camera’s onvf protocol is onvf Profile S, does not support HTTPS protocol;
Auto focus camera, other manufacturers NVR can only zoom, can not focus.
5, The camera all supports Motion Detect,FTP,Email alarm, RTSP.
A,How to set up motion detection?
Access to IPC via IE (or CMS software), device configuration – alarm function – motion detection – on and save.
B, About FTP
FTP upload video and pictures, pictures will always upload, video files larger, after the alarm, the video file will be completed to upload.
We suggest the Sever-U and FileZilla FTP Server to upload the video or image.
C,For the Email alarm,please use Email server which supports SMTP ( Hotmail ,Yahoo not support SMTP ,it not supports Gmail temperately since the server problem ) .
D, RTSP URL for VLC media Player :
RTSP port: 554
rtsp: // (IP): (PORT) / user = (USER) & password = (PWD) & channel = (Channel) & stream = (Stream) .sdp? Real_stream
rtsp: //10.6.10.25: 554 / user = admin & password = & channel = 1 & stream = 0.sdp? Real_stream (stream = 0 primary stream 1 auxiliary stream)
If it is through the public network need to RTSP port open (default is 554), the port in the network service-RTSP can be set
6, About DDNS
Mapped media TCP port: 34567 and HTTP port: 80 (Note: mapping need to be changed to non-80)
Note: The two ports in the network settings can be viewed, can be modified
What domain names are supported?
– CN99 / DynDns / Oray / NO-IP / MYQ-SEE

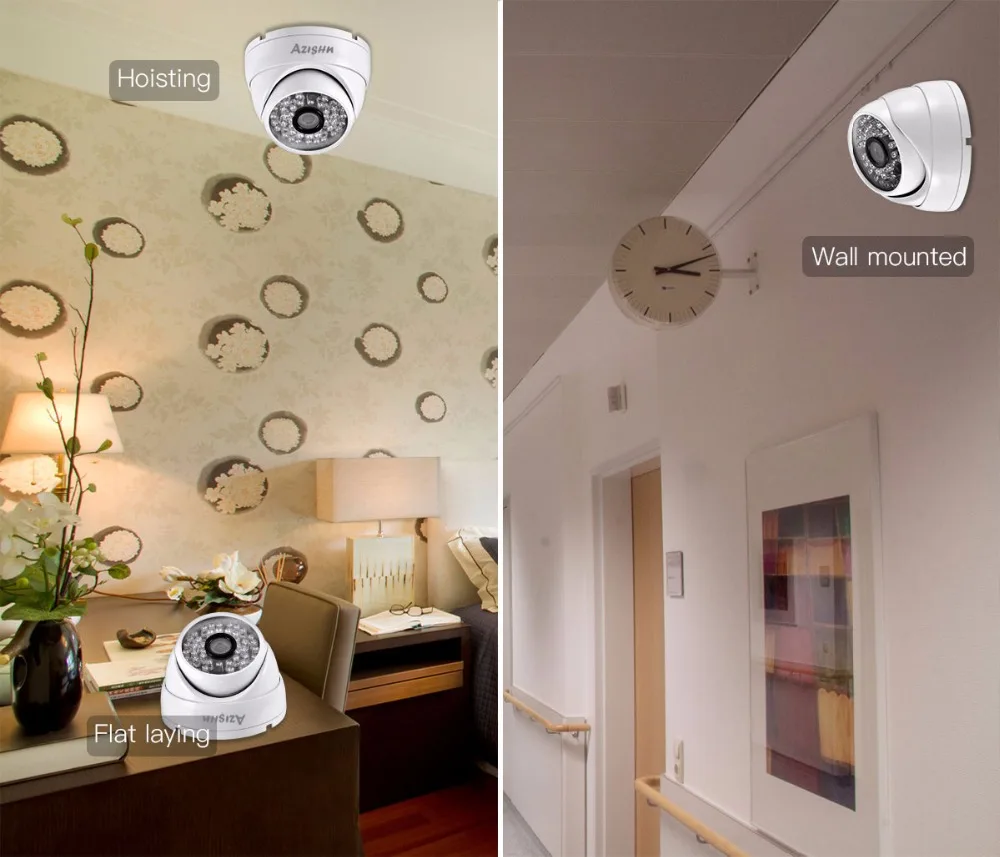

Wired dome camera, ceiling-mounted, versatile in applications and easy installation, indoor and outdoor use.
48Pcs IR LEDs lights offer you with 25M night vision that functions even in pitch black, which transmit their infrared rays in a frequency imperceptible to the human eye ,without disturbing those being monitored.
With motion detection enabled ,whenever detect moving objects ,IP surveillance camera will trigger alerts by immediately sending alert e-mails and pushing notifications to your device. enabling an extra layer of protection for your home or business. you’re able to be alerted of whatever goes bump throughout the day and night.
We have used with IP66 Level waterproof steady metal case and also extral protection to ensure our cameras will be durable enough for using outdoor even under rain or shine etc bad weather.
POE Function Optional
DV12 version:Please use 12V 2A power supply, packaging does not include the power supply.
POE 48V version:don’t need power supply .You need the PoE Switches(48V) to make it work!!package not with poe switch .
Support iPhone, iPad, Android Tablet and PC.
How to use it ?
1,View via PC
Install the CMS(CMS for Windows,VMS for Mac)( Software in the CD ,or can download online,need contact us )
You can select the language(18 languages)
How to watch via CMS:
2,View via web:
Local login, 192.168.1.10 (camera default IP address)(Cloud website:www.xmeye.net)
3,View via Phone(iOS and Android):
Find “XMEye” in Apple APP or Android Market
