Mini DIY 6 in 1 Multi-functional Motorized Transformer Jigsaw Grinder Driller Plastic Metal Lathe Wood Lathe Sawing Machine

From £113.11
  • Ships From:

  • Color:

Categories:

Buy With Confidence

100% Safe Payment


;

  • Description

    Need to make molds or samples, create products and DIY process soft metals? Being curious about making crafts? Try this professional 6 in 1 motorized jigsaw, grinder, driller, miller, metal lathe, wood lathe. It’s perfect for processing plastic, models, soft metal and wood.

    Features:
    Mini 6 in 1 lathe machine for DIY assembly of sawing machine, grinder, driller, wood lathe, metal lathe, miller.

    Great handcraft tool kit for DIY, hobby, model making, crafts, students, small parts processing, etc.
    Made of advanced aluminum alloy, durable and non-deformable for usage.
    Interesting to install and use, perfect gift for lathe DIY enthusiasts.

    This mini multipurpose machine can be assembled into 6 kinds of different lathes, but you can use only one kind of these lathes at the same time.

    Specifications:
    Material: Aluminum Alloy + ABS
    Color: Black + Red
    Power: 48W
    Motor Speed: 20000rpm
    Plug Type: US Plug / EU Plug (Optional)
    Voltage: 100-240V 50/60Hz
    Output: 12V 4A
    Can Assemble Machine: Jigsaw, Grinder, Driller, Wood Lathe, Metal Lathe, Miller
    6-in-1 Functions: Drilling, Sanding, Turning Lathe, Milling, Sawing, Wood Turning Lathe
    Can Process Objects: Wood, Plastics, Soft Metal(Gold, Silver, Copper, Aluminium, etc.) Acrylic, PCB, etc.
    Package Size: 47.5 * 36 * 10cm / 18.70 * 14.17 * 3.94in
    Package Weight: 3.2kg / 7.05 lb

    Technique Data of Jigsaw:
    Operating Space: 90 * 90mm / 3.54 * 3.54in
    Maximum Cutting Saw Depth: 4mm Hardwood, 7mm Triply Wood, 18mm Softwood, 0.5mm Aluminium Flakes, 2mm Organic Glass
    Jigsaw Weight: 0.72kg / 1.59lb
    Jigsaw Size: 15 * 10 * 14cm / 5.91 * 3.94 * 5.51in

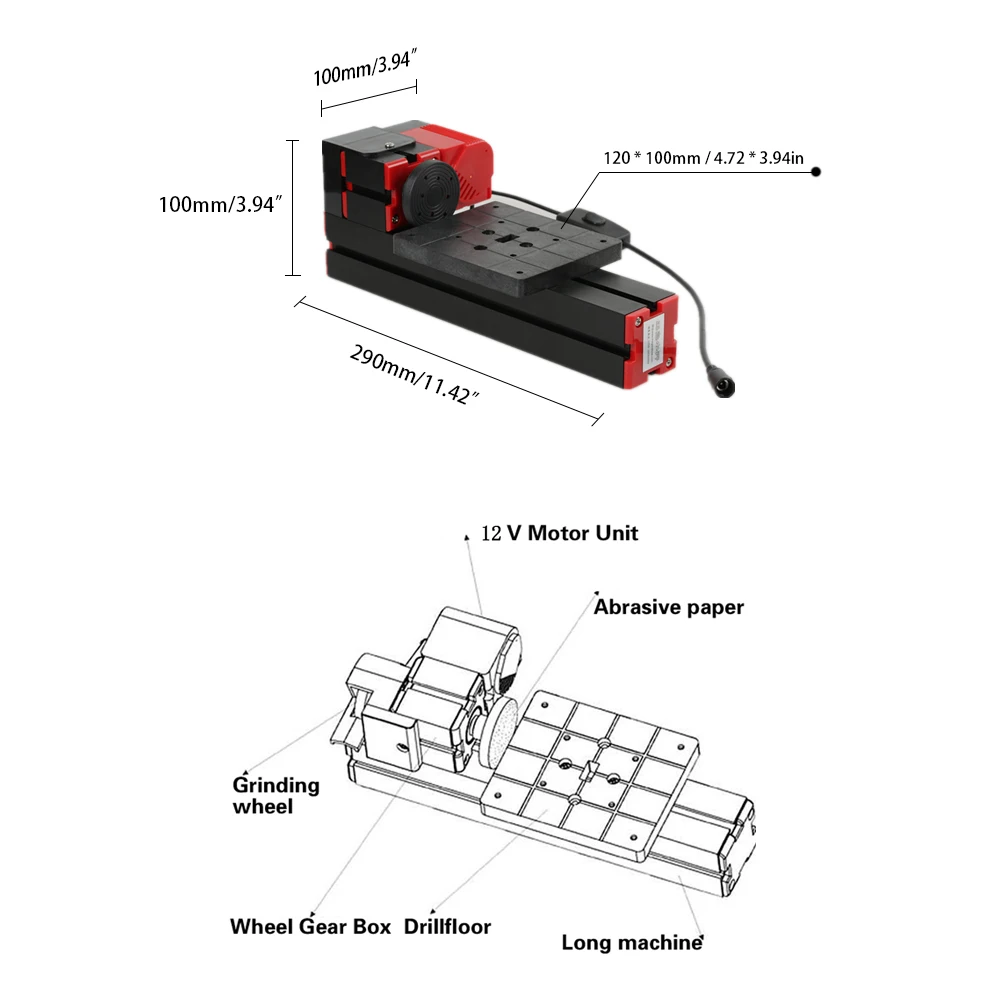

    Technique Data of Grinder:
    Operating Space: 120 * 100mm / 4.72 * 3.94in
    Grinding Materials: Wood, Plastics, Soft Metal(Gold, Silver, Copper, Aluminium, etc.)
    Grinder Weight: 0.75kg / 1.65lb
    Grinder Size: 29 * 10 * 10cm / 11.42 * 3.94 * 3.94in

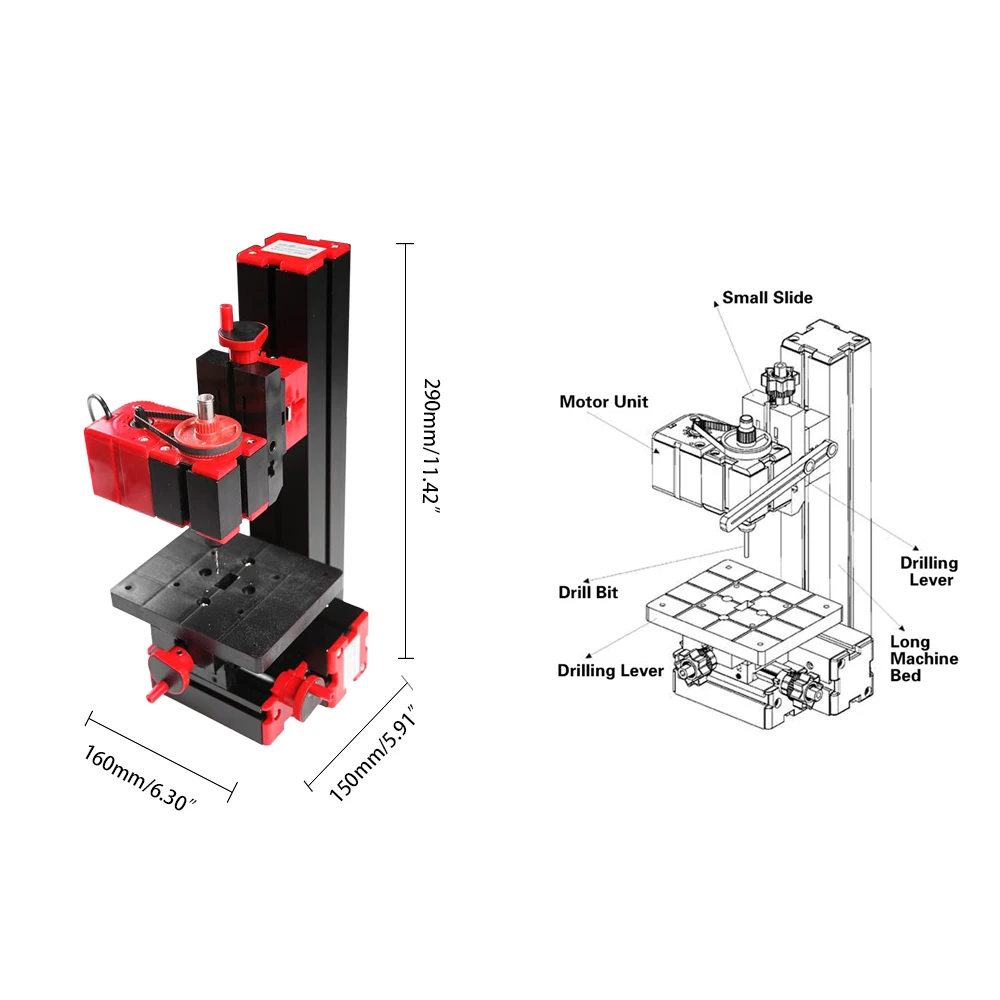

    Technique Data of Driller:
    Operating Space: 120 * 100mm / 4.72 * 3.94in
    Slide Stroke: 30-50mm

    Collets Size: 1-6mm
    Clamping Size of Vice Clamp: 0-35mm
    Driller Weight: 1.46kg / 3.22lb
    Driller Size: 16 * 29 * 15cm / 6.30 * 11.42 * 5.91in

    Technique Data of Wood Lathe:

    Maximum Processing Diameter: 45mm
    Processing Length: 135mm
    Grinding Materials: Wood, Plastics
    Wood Lathe Weight: 1.28kg / 2.82lb
    Wood Lathe Size: 29 * 15 * 13cm / 11.42 * 5.91 * 5.12in

    Technique Data of Metal Lathe:

    Maximum Processing Diameter: 45mm
    Processing Length: 135mm
    Grinding Materials: Soft Metal(Gold, Silver, Copper, Aluminium, etc.)
    Metal Lathe Weight: 1.35kg / 2.98lb
    Metal Lathe Size: 29 * 15 * 16cm / 11.42 * 5.91 * 6.30in

    Technique Data of Miller:
    Slide Stroke: 30-50mm

    Collets Size: 1-6mm
    Clamping Size of Vice Clamp: 0-35mm
    Grinding Materials: Wood, Plastics, Soft Metal(Gold, Silver, Copper, Aluminium, etc.)
    Metal Lathe Weight: 1.45kg / 3.20lb
    Metal Lathe Size: 29 * 16 * 20cm / 11.42 * 6.30 * 7.87in

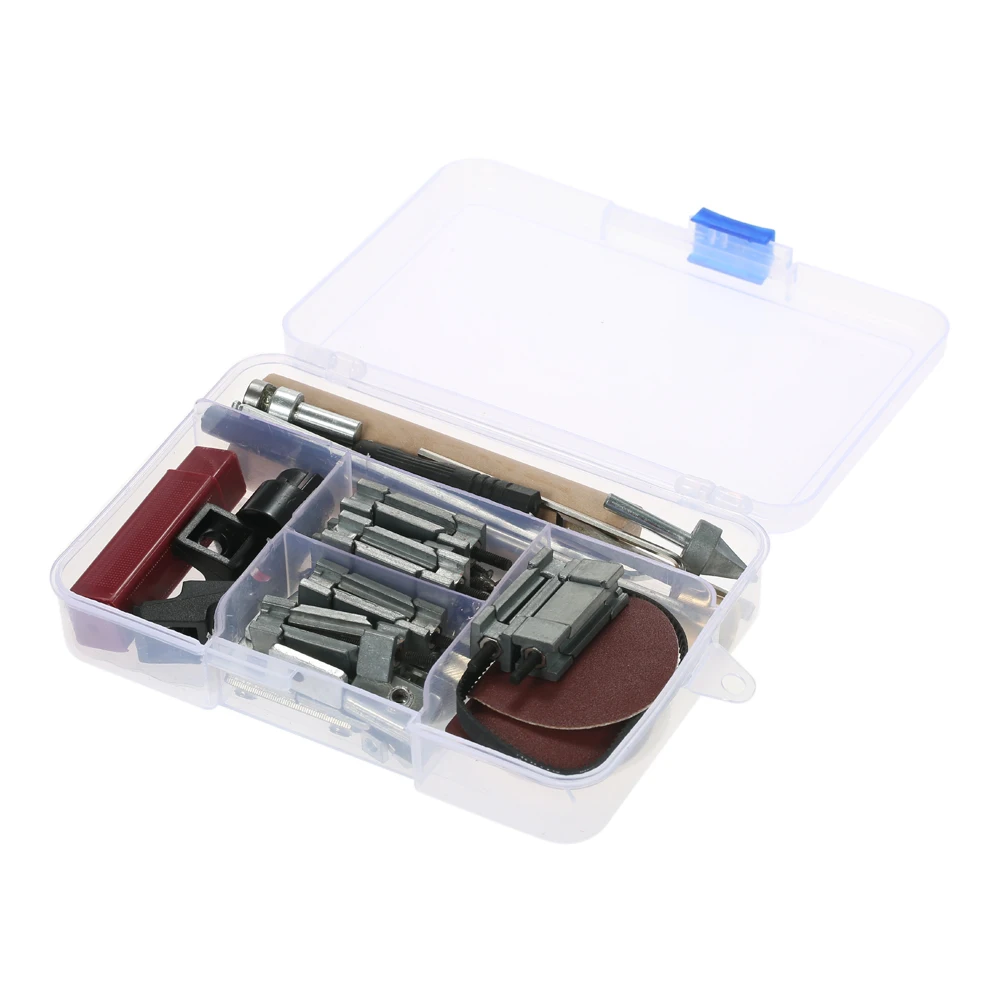

    Package List:

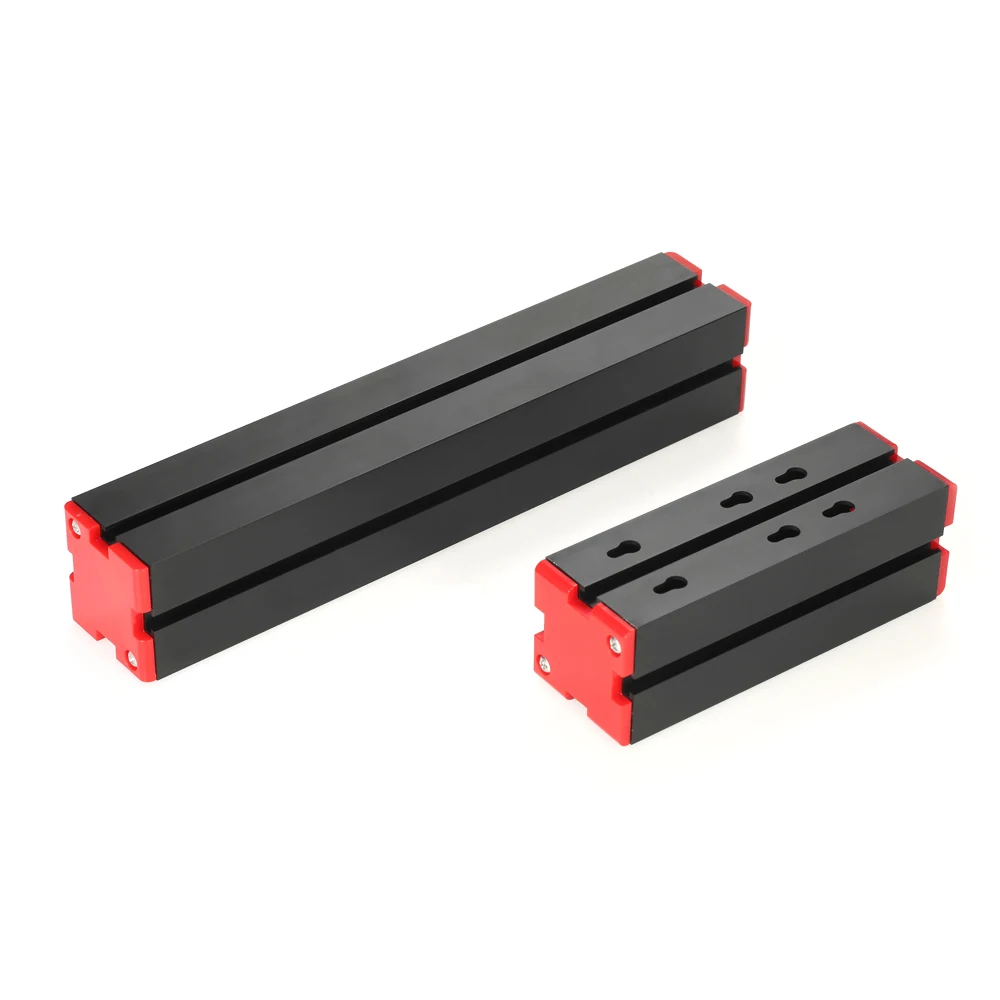

    1 * Long Machine Bed
    1 * 3-Jaw Chuck
    1 * Abrasive Disc
    1 * Working Accessories
    1 * Driller Rocker Arm
    2 * Small Slider
    1 * Big Belt Cover Block
    1 * Grinder Protection Cover
    2 * Right-angle Fixed Plate
    1 * Power Transformer
    1 * Plain Vice
    1 * Big Slider

    1 * Motor
    1 * Counter Shaft
    1 * Tail Stock
    1 * Short Machine Bed

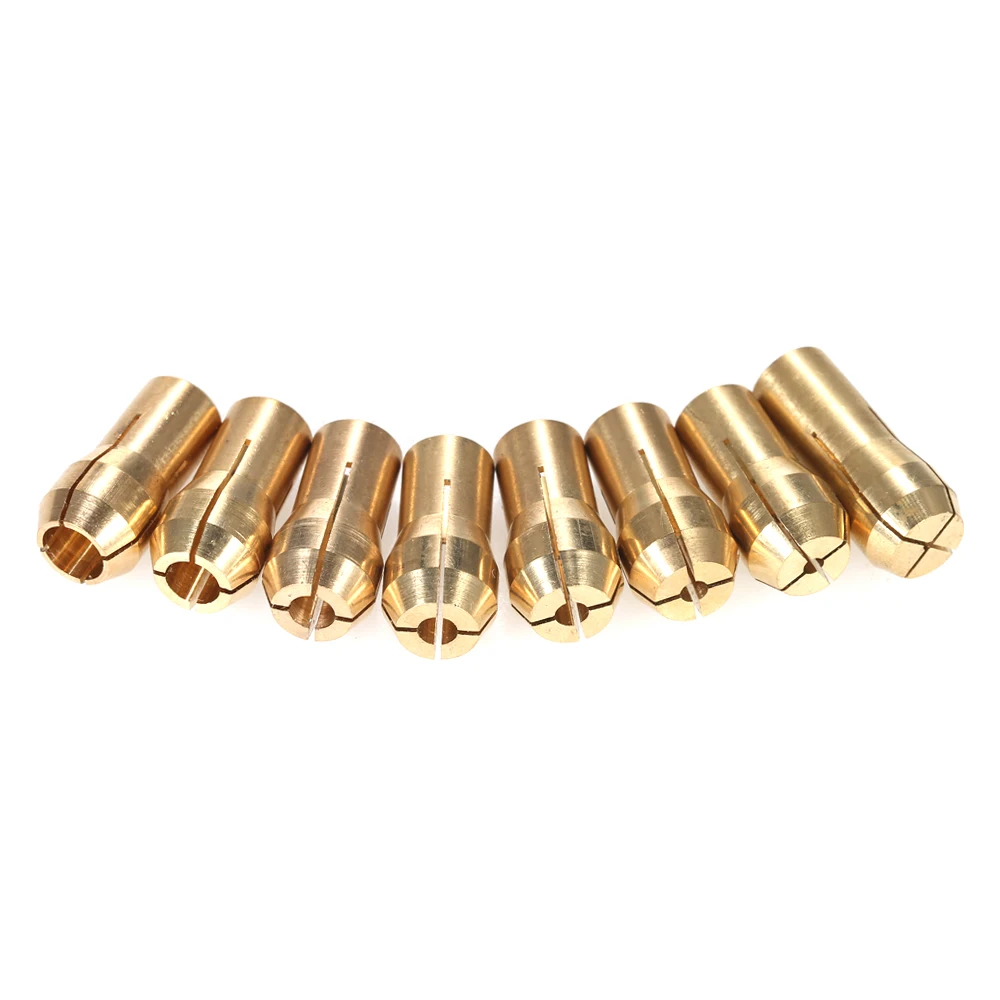

    8 * Copper 1-6mm Collets

    3 * Bracket
    1 * Sawing Machine Base + Bracket
