NEJE Master 2s N30820 20W CNC Lightburn Laser Engraving Cutting Machine Portable Wood Engraver Cutter APP Control Bluetooth

From £349.52
  • Ships From:

Categories:

Buy With Confidence

100% Safe Payment


;

  • Description

    NOTE:

    Caros compradores brasileiros, pagamos tarifas elevadas pelos produtos no armazém brasileiro. Se você optar por enviá-lo para o armazém brasileiro, ele será entregue em 1-5 dias úteis, obrigado!

    (Como os óculos são produtos anti-epidêmicos, a alfândega brasileira não permite produtos com óculos. Os produtos no armazém do Brasil não incluem óculos, obrigado pela compreensão).


    Product Description
    Model:                 NEJE Master 2s N30820

    Input Power:         20W-30W (Suitable for 12V2A/3A power adapter,12V*2A/3A=24W-36W)

    Optical Power:         450nm 5.5W
    Control Board:          2 x MCU + Wireless control + MEMS
    Satety Protection:     MEMS
    Working Size:           170 x 170 mm
    Pixel:      2266 x 2266 px
    Dot pitch:  0.075mm
    Wavelength: 450nm
    Beam Shape: Dot (Focusable)
    Drive:  Built-in
    Lens Material:           D-ZK3
    Heatsink Material: Aircraft Aluminum + Brass Shell
    Luminous Color: Blue
    Input Voltage: AC100-240V, 50/60Hz
    Output Voltage: DC12V, 3A/4A
    Image Format: .bmp .jpg .png .nc .dxf   etc..
    Software:   NEJE APP for Android, NEJE Wireless APP for iOS / macOS, NEJE software for windows, Benbox, LaserGRBL with firmware GRBL1.1f.,LightBurn Software with firmware GRBL1.1f.
    LightBurn ( paid software from the official website of Lightburn.) supports Windows, Mac OS, and Linux.
    NEJE Software Upgrading Service: YES
    NEJE Cloud Gallery:  YES
    NEJE Scanner function:  YES
    Frame material:    CNC Cutting Composite plate, aluminum alloy, acrylic.
    Can Be Engraving:MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum
    Can Not Engrave:Metal/Glass/Stone/Ceramics/PCB/Stainless Steel/Reflective Material/ Transparent Material

    Description:
    1.NEJE Master 2S is a engraving and cutting machine for area ( 170x170mm ), with its main structure being formed by unique special composite materials and CNC process precision assembly, which enables the machine with durability without deformation, ensuring long-term service life and high accuracy.
    2.NEJE Master 2S is equipped with 2 processors and can support 2 firmwares at the same time. When starting the software, the machine will automatically recognize the software and connect to it. In NEJE mode, NEJE Windows software works with NEJE Android APP. This mode is suitable for beginners, which is simple and can help create high-quality works.
    3. NEJE software provides cloud services, with numerous high-quality materials to help you create better works.
    4.NEJE’s online G-code helps beginners to easily understand the G-code world.
    5.In NEJE mode, with built-in sensor protection function, if the position changes when the machine is working, the machine will stop working to protect it from damage.
    6.Another processor is Atmel, which supports BENBOX firmware and GRBL 1.1F firmware. Both these two modes are suitable for professional players to handle G-code.
    7.NEJE Module is equipped with temperature sensing. Each NEJE laser has undergone long-term aging test to ensure that the heat dissipation is controlled within 70 degrees Celsius. Laser modules without temperature sensing function cannot ensure that the laser can work for a long time because it is impossible to detect the quality for the mode in which the temperature cannot be measured.

    Package list

    1 * Master 2S Laser Engraving Machine

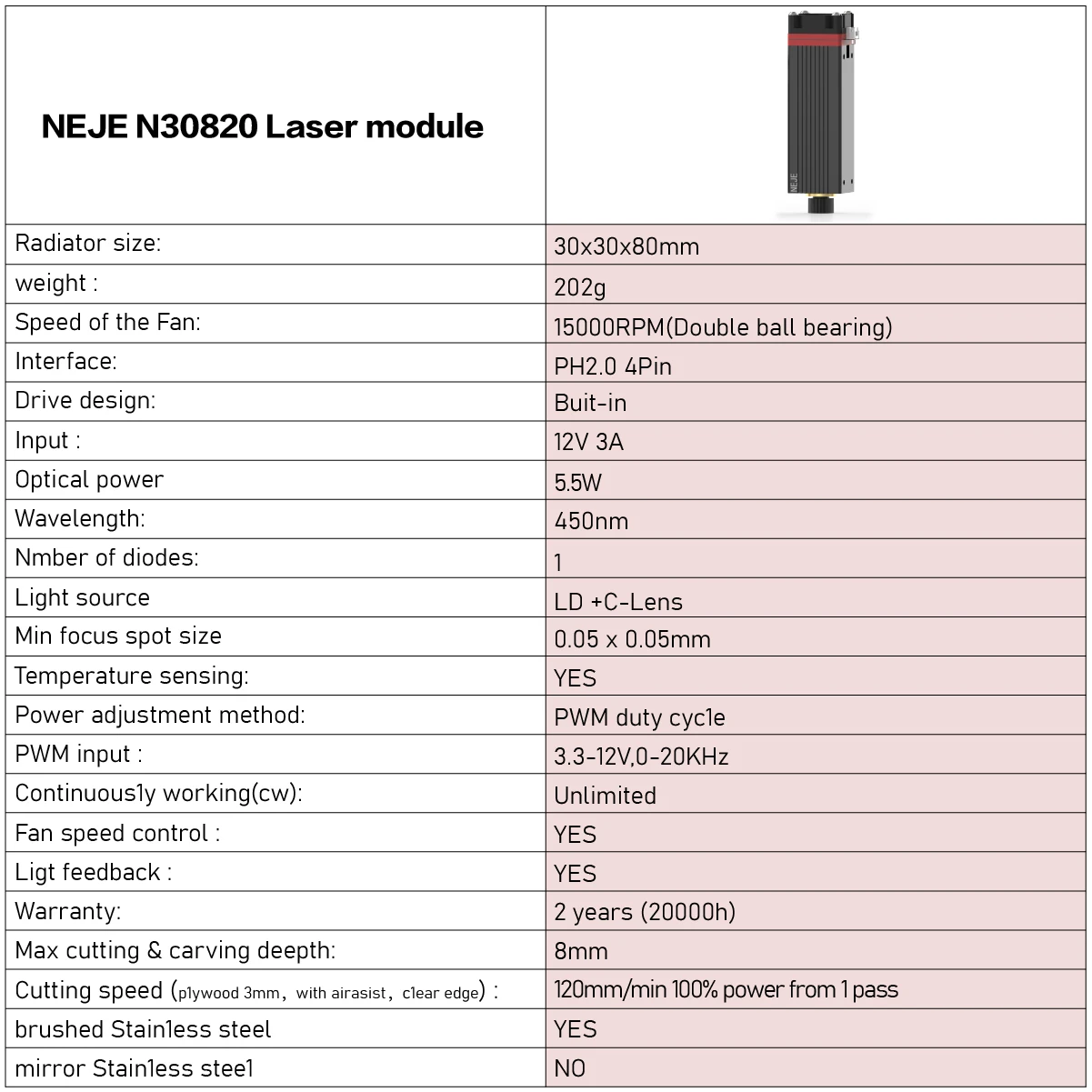

    1 * N30820 Laser Module
    4 * Nuts
    1 * goggle
    1 * L-shaped wrench
    1 * USB Cable
    1 * 12V3A Power Adapter
    1 * Power adapter
    1 * Small Wooden block
    1 * Test Paper
